Carbon fiber is increasingly prevalent in various industries, from aerospace to sports equipment, where it has replaced traditional metals in many applications. While metals like aluminum and steel remain essential, composite materials like carbon fiber have revolutionized material science. This article explores carbon fiber’s properties, structure, and differences from metals, ultimately answering the questionIs carbon fiber a metal?

What Is Carbon Fiber? A 1-Minute Overview

Carbon fiber is a material composed of thin carbon filaments (similar to a fabric), with 99.99% pure carbon content. Renowned for its exceptional mechanical properties and durability in harsh conditions, it was first used in light bulbs in 1860.

Appearance and Texture

• Visual: Carbon fiber features a woven structure, distinct texture, and matte finish (as shown in the image).
• Tactile: It feels rigid yet incredibly lightweight. Under a microscope, its fine fibers bond tightly within a resin matrix.

Why It’s Mistaken for Metal

1. Metallic Sheen: Its surface can resemble metal.
2. Superior Mechanics: Its properties often outperform metals, leading to confusion.

Is Carbon Fiber a Metal? Material Classification Analysis

To dispel misconceptions, let’s compare carbon fiber and metals at their core:

Atomic Structure vs. Metal Lattice

Aspect	Carbon Fiber	Metal (e.g., Steel, Aluminum)
Atomic Arrangement	Graphite crystals in a polymer matrix	Lattice with free-moving electrons
Bonding Type	Covalent (strong, directional bonds)	Metallic (delocalized electron “sea”)
Structural Order	Anisotropic (properties vary by fiber direction)	Isotropic (uniform in all directions)
Defect Sensitivity	Brittle; cracks propagate easily	Ductile; dislocations allow deformation

Bonding and Electrical Conductivity

Property	Carbon Fiber	Metal
Primary Bonding	Covalent (strong, directional)	Metallic (lattice of shared electrons)
Conductivity	Low (semiconductor along fibers, insulator vertically)	High (free electrons enable current flow)

Why Carbon Fiber Is Classified as an Advanced Polymer Composite

Carbon fiber cannot be used alone; it requires a resin matrix to form carbon fiber-reinforced polymer (CFRP) composites. These hybrids blend exceptional mechanical properties.

Microstructure and Chemical Composition

Aspect	Carbon Fiber	Metal
Structure	Oriented fibers in resin matrix	Uniform grains
Texture	Anisotropic (direction-dependent)	Isotropic (uniform in all directions)
Defects	Risk of delamination	Grain boundary dislocations

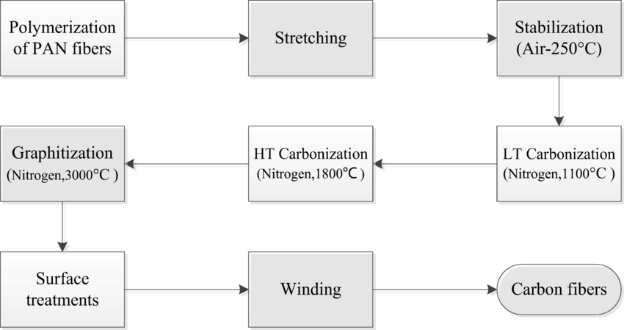

How Is Carbon Fiber Manufactured?

1. Prepreg Formation: Polymer precursor is oxidized at 250°C.
2. Carbonization: Non-carbon atoms are removed.
3. Graphitization: Crystals align at ~2500°C for enhanced strength.
4. Coating: Fibers are coated to improve resin adhesion.
5. Weaving & Molding: Final composite formation.

Graphite Crystals and Alignment

Carbon atoms arrange in hexagonal graphene layers to form graphite crystals. Graphitization at high temperatures aligns these crystals, boosting strength and stiffness—though increasing brittleness.

Resin Matrix Options

Resin	Advantages	Disadvantages	Best For
Epoxy	Low cost, easy to use	Limited heat resistance	Bicycles, automotive
BMI	Withstands 200–250°C	Brittle	Aerospace
PEEK	Extreme heat/chemical resistance	Very expensive	Jet engines

Impact of Fiber Volume Fraction (Vf)

• Optimal Range: 45–55% Vf balances strength and resin adhesion.
• Below 40%: Weak, resin-dominated.
• Above 60%: Poor bonding, prone to cracking.

Key Mechanical and Physical Properties

Strength-to-Weight Ratio

Carbon fiber is 20% the weight of steel but 5x stronger in tension:

Property	Carbon Fiber	Steel	Aluminum
Tensile Strength	500–700 GPa	50–300 GPa	40–80 GPa
Compressive Strength	300–400 GPa	Comparable	Lower
Density	1.6 g/cm³	7.8 g/cm³	2.7 g/cm³

Stiffness (Modulus) and Fatigue Life

• Stiffness: Carbon fiber matches steel (30–50 Msi modulus).
• Fatigue: It has an infinite fatigue life under proper stress, making it ideal for aircraft.

Thermal Expansion, Conductivity, and Magnetic Response

• Thermal Expansion: Near-zero for carbon fiber; metals conduct heat well.
• Conductivity: Anisotropic in carbon fiber (directional); metals are omnidirectional conductors.
• Magnetic Response: Carbon fiber is non-magnetic; some metals are magnetic.

Carbon Fiber vs. Metals: Steel, Titanium, Aluminum

Weight and Density

Material	Density (g/cm³)	Weight Comparison
Carbon Fiber	1.5–1.6	70% lighter than steel, 40% lighter than titanium
Aluminum	2.7	60% heavier than CF
Titanium	4.5	~3x heavier than CF
Steel	7.8	5x heavier than CF

Strength and Stiffness

Property	Carbon Fiber	Steel	Titanium
Tensile Strength	500–700 GPa	50–300 GPa	100–200 GPa
Stiffness (Modulus)	30–50 Msi	29 Msi	15–17 Msi

Corrosion, Fatigue, and Impact Resistance

• Corrosion: Carbon fiber is inert; steel rusts, while titanium is highly resistant.
• Fatigue: Carbon fiber withstands infinite cycles; titanium excels in fatigue resistance.
• Impact: Carbon fiber is brittle; metals are more impact-resistant.

Cost per Kilogram

Material	Cost (USD/kg)
Carbon Fiber	$10–$30
Aluminum	$2–$5
Titanium	$30–$100
Steel	$0.50–$2

Advantages and Disadvantages of Carbon Fiber

• Advantages:
  • Highest strength-to-weight ratio (ideal for sports and transportation).
  • Corrosion-resistant (unlike most metals).
  • Exceptional fatigue strength and stiffness.
• Disadvantages:
  • Brittle; poor impact resistance.
  • Limited recyclability.
  • High manufacturing and processing costs.
  • Difficult to repair compared to metals.

CNC Machining: Carbon Fiber vs. Aluminum

Both materials are lightweight and used in aerospace/automotive, but machining differs significantly:

Machining Difficulty and Tooling

• Aluminum: Ductile and easy to machine; standard carbide tools work.
• Carbon Fiber: Requires low cutting speeds and diamond-coated tools to avoid delamination.

Chip vs. Dust Management

• Aluminum: Produces chips, easily managed.
• Carbon Fiber: Generates fine, harmful dust; requires PPE and vacuum systems.

Tolerances and Edge Quality

Factor	Carbon Fiber	Aluminum
Tolerances	±0.005″ (prone to wear)	±0.001″ (more precise)
Edge Quality	Risk of delamination	Smooth, burr-free

Post-Machining Finishing

• Carbon Fiber: Sealed to prevent water absorption.
• Aluminum: Anodized for corrosion resistance.

Conclusion

Carbon fiber has emerged as a revolutionary material, addressing modern demands for lightweight, high-strength, and fuel-efficient solutions. While metals have served us well, carbon fiber’s unique properties—particularly its strength-to-weight ratio and corrosion resistance—make it indispensable in critical applications. It is not a metal but an advanced composite, reshaping industries and driving innovation toward a lighter, stronger future.
