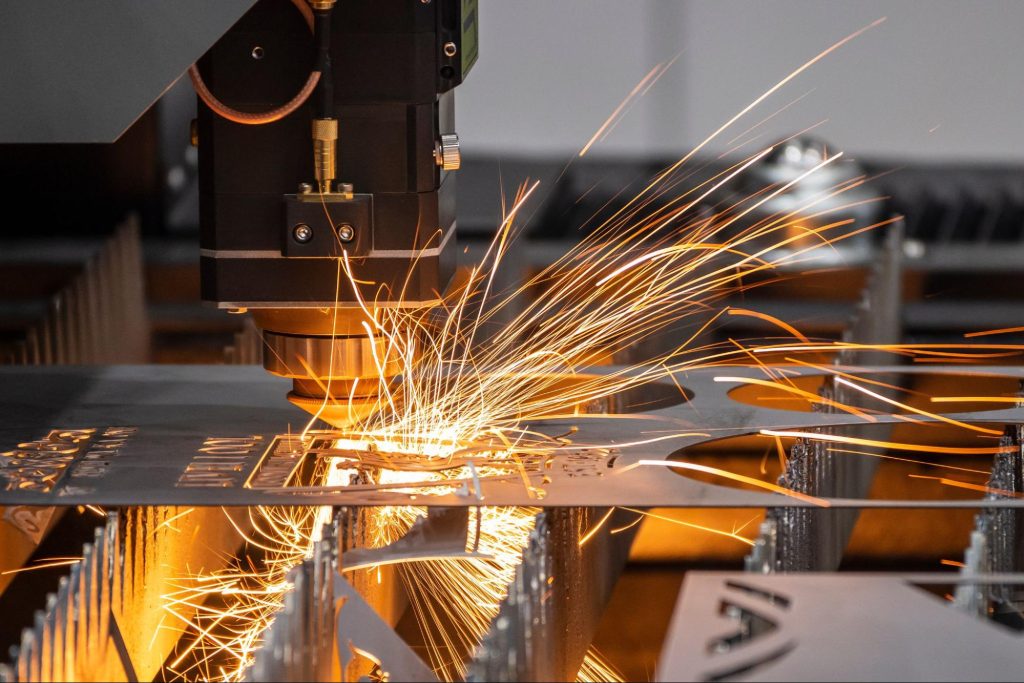

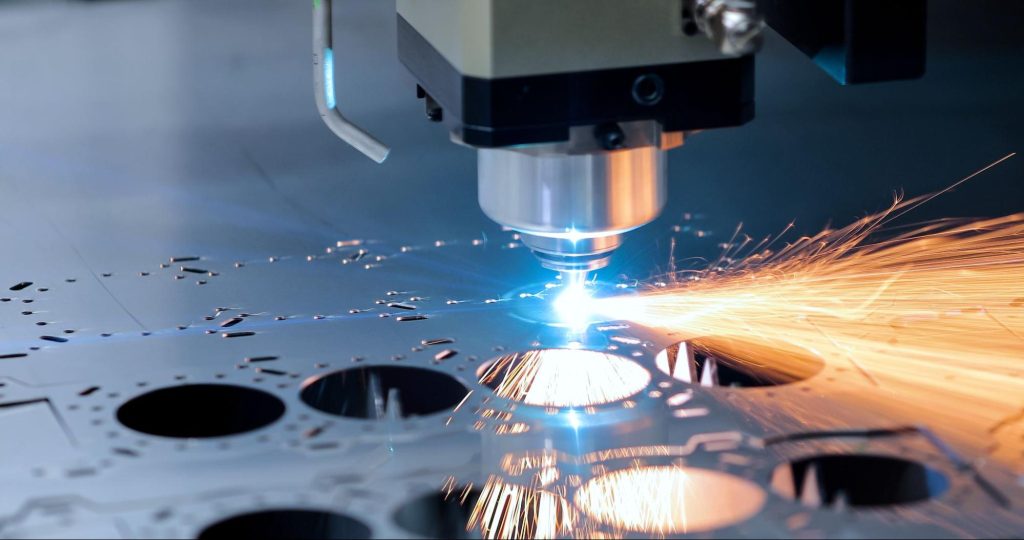

Laser cutting has become a fundamental technology in modern metal manufacturing, offering high speed, excellent repeatability, and precision. It is a precise, non-contact method that uses a focused laser beam to cut metals and other materials.
Particularly in the field of sheet metal manufacturing, laser cutting plays a crucial role, enabling complex designs, tight tolerances, and efficient scalability. Whether you’re creating a single prototype bracket or producing thousands of metal enclosures, understanding the laser cutting process can help you design smarter and manufacture more effectively.
This article details the sheet metal laser cutting process, focusing on technical fundamentals and practical design tips.
How Metal Laser Cutting Works (Step by Step)
Laser cutting begins with a design layout created using CAD (Computer-Aided Design) software programs, which generate output files typically in 2D format. Some laser cutters can still work with 3D models by slicing them into 2D layers.
The file can be loaded into a laser cutting software program, which will help set the correct laser parameters, such as power and speed, and define the toolpath the laser will follow. This laser cutting program will also be used to generate machine instructions that are uploaded to the laser cutting machine. Here’s what a typical workflow looks like:
- Engineers upload a 2D drawing file (usually in .dwg, .dxf, .eps, or .ai format).
- The file is converted into machine-readable instructions via CAM software.
- A flat metal sheet is placed on the cutting bed.
- The laser beam is precisely focused to a fine focal point.
- The laser cutter’s CNC software guides the laser path for cutting or engraving.
- Oxygen, nitrogen, or air blows away the molten material to achieve a clean cut.
- Heat is managed through built-in ventilation.
Types of Laser Cutting Machines
Understanding the various types of laser cutting machines is key to selecting the right tool for your project. Each type has unique capabilities and is compatible with different material groups.
Typical Laser Cutter Types
| Laser Type | Best For | Advantages | Disadvantages |
|---|---|---|---|
| Fiber | Metals (steel, aluminum, stainless steel) | Energy-efficient, fast, low maintenance | Upfront cost may be higher than CO₂ |
| CO₂ | Non-metals (plastics, wood) | Smooth surfaces on organic materials | Less efficient on metals |
| Nd:YAG | Precision tasks, thin metals | High beam quality, suitable for fine processing | Less common and more expensive |
Fiber lasers dominate metal cutting applications due to their power and efficiency, while CO₂ lasers are suitable for applications involving wood, plastic, or acrylic.
Best Metals for Laser Cutting
Laser cutting works best with metals that respond well to laser beam energy and assist gases:
- Mild Steel: The most commonly used metal in laser cutting because it is affordable and easy to cut.
- Stainless Steel: Requires slightly more power than mild steel but produces corrosion-resistant parts with excellent edge finishes.
- Aluminum: Lightweight and reflective, requiring a fiber laser for best results and may need specialized settings due to reflectivity.
- Brass and Copper: More challenging than mild steel due to reflectivity and thermal conductivity but feasible with fiber lasers and adjusted parameters (such as cutting speed, feed rate, and gas flow).
- Titanium: Used in aerospace and medical fields; requires a high-power fiber laser and careful selection of inert gas.
Metals with coatings, heavy oxidation, or high reflectivity may require special surface treatment or laser types to ensure quality.
Laser Cutting vs. Other Metal Cutting Methods
When deciding on the best cutting method for your sheet metal project, consider how laser cutting compares to alternatives.
| Cutting Method | Advantages | Limitations | Typical Applications |
|---|---|---|---|
| Laser Cutting | High precision, minimal burrs, fast, tool-free | Thickness limited to less than ~32 mm, higher initial cost for industrial systems | Complex parts, thin to medium sheets, rapid prototyping to production |

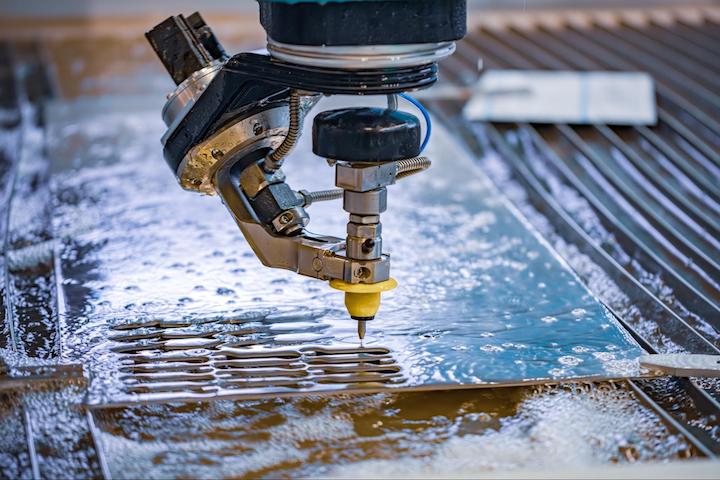

| Waterjet Cutting | Can cut very thick materials, no heat-affected zone | Slower than laser, rougher edge finish | Thick metals, composites, heat-sensitive materials |
| Plasma Cutting | Fast for thick metals, low equipment cost | Lower precision, wider kerf, heat-affected zone | Structural steel, thick plate cutting |
| Mechanical Shearing | Cost-effective for straight cuts, no heating | Limited to simple cuts, risk of distortion | Simple profiles, high-volume blanking |
| Stamping | Very fast for repetitive holes and shapes | Die costs, limited geometric complexity | High-volume perforated sheets |
Compared to waterjet, plasma, mechanical shearing, and stamping, laser cutting excels at producing complex shapes with tight tolerances and clean edges, especially in thin to medium gauge metals. While plasma and waterjet are better for thicker or more complex 3D contours, laser cutting stands out in sheet metal manufacturing for its speed, precision, and minimal post-processing.
Advantages of Laser Cutting
Laser cutting combines speed, automation, and precision, providing a seamless path from digital design to physical parts. This makes it ideal for engineers, product designers, and manufacturers looking to accelerate development cycles without sacrificing quality.
Whether using an in-house laser cutter or leveraging the scalability and convenience of on-demand digital manufacturing service providers, mastering the design principles and processes of laser cutting can unlock the full potential of this advanced technology. This knowledge enables the rapid, cost-effective production of high-quality metal parts at any production scale.
The key advantages of laser cutting are:
- Minimal material waste
- High-quality edge finishes
- Automation-ready for production runs
- Thin or thick metal sheets (0.60-32 mm steel with fiber lasers)
- Tight tolerances: ±0.15 mm or better
- Speed: High feed rates, short lead times
- Automation: Seamless integration into digital workflows
- Tool-free: No need to change physical dies or blades between different components being cut
- Higher part yield by using common edges of flat profiles when nesting parts on a blank
Limitations of Laser Cutting
- Material Thickness: Materials thicker than 32 mm should be cut using plasma or waterjet cutting processes.
- Reflective Metals: CO₂ lasers are incompatible with aluminum or copper; fiber lasers should be used instead.
- Safety and Ventilation: Laser cutting requires exhaust and air filtration systems.
- Secondary Processing: Laser-cut parts may require deburring or surface finishing.
- Complex 3D Shapes: More suitable for CNC machining or metal forming.
Sheet Metal Laser Cutting Design Guidelines
- Tolerances: Typically in the ±0.1 mm range.
- Minimum Feature Size: ~0.5 mm, depending on alloy and thickness.
- Kerf Width: ~0.1–0.3 mm; account for kerf width during part nesting.
- Corner Design: Use radiused corners to reduce stress concentrations.
- Minimize Internal Features: More holes or contours mean longer cutting times.
- Use Common Thicknesses: Availability affects price and lead time.
- Nest Cleverly: Efficient part arrangement on sheets reduces material waste.
- Avoid Heat-Sensitive Designs: Thin connections may warp due to localized heating.
Use Cases and Applications of Metal Laser Cutting
The versatility of sheet metal laser cutting supports both standard and highly specialized manufacturing requirements. Some common applications include:
Electronic Component Enclosures
Laser cutting is widely used to produce custom enclosures for electronic products, providing the precision needed for clean cuts, ventilation patterns, and mounting features. It supports rapid prototyping and low-volume production of PCB (printed circuit board), sensor, and control unit enclosures.
Mechanical Brackets
Whether for robotics, automation systems, or general machinery, laser-cut brackets offer structural reliability and dimensional accuracy. They can be quickly iterated during concept development and scaled efficiently for production.
Decorative and Functional Panels
Architectural metal screens, industrial control panels, and signage often combine aesthetics with functionality. Laser cutting enables complex perforations, logos, and custom cutouts while maintaining structural integrity and clean edges.
Aerospace Sheet Metal Parts
In the aerospace industry where performance and precision are critical, laser cutting delivers lightweight, high-strength components with tight tolerances. Applications include internal structural elements, mounting plates, and detailed skin panels.
Electric Vehicle (EV) Battery and Chassis Components
Laser cutting supports the growing electric vehicle industry by manufacturing parts such as battery trays, heat shields, and lightweight chassis components. Its ability to process aluminum and high-strength steel with minimal distortion is crucial for meeting performance and weight targets.
Simplify Your Workflow with Precision Metal Laser Cutting Services
Laser cutting is one of the most efficient and precise methods for manufacturing metal parts, valuable from initial prototyping to full-scale production. Its ability to deliver tight tolerances, fast turnaround, and seamless digital integration makes it a reliable solution for precision sheet metal manufacturing.
Whether utilizing an in-house laser cutter or an on-demand platform like Fictiv, laser cutting provides a smooth transition from concept to creation, combining accuracy, efficiency, and scalability to meet today’s demanding production needs.
As part of a modern digital manufacturing workflow, laser cutting services can help project teams move from design to delivery faster. For more information, please contact us at Debaolong Seiko. You are also welcome to upload your designs to Debaolong Seiko for a quote.
