Filler materials or compounds can be added to thermoplastics to improve their mechanical properties, reduce material costs, or achieve a combination of both. The performance of filled thermoplastics can vary depending on the type of base plastic, the type of filler used, and the filler concentration. These improved characteristics make filled thermoplastics valuable in a variety of applications and industries.

In this article, we will delve into the fillers used in thermoplastics, how they modify these plastics, different types of fillers and their effects on plastics, when to use filled vs. unfilled plastics, and the design limitations of filled plastic parts.

How Plastic Fillers Alter Thermoplastic Properties

Plastic fillers can be used to significantly change the properties of thermoplastics. Some properties are highly beneficial to the final functionality of the part, including:

• Tensile Strength: Adding glass fibers or carbon fibers can significantly increase the tensile strength of thermoplastics. For example, glass fiber-reinforced nylon has more than twice the tensile strength of standard unfilled nylon.
• Stiffness and Hardness: Fillers such as glass fibers are commonly used to increase the stiffness and hardness of polymers. Other inert fillers, such as chalk, talc, and barium sulfate, can also be used and are usually cheaper than the base polymer.

The size of the particles added to the plastic is important; finer particles generally distribute more evenly, which can improve strength and surface finish, while larger, coarser particles may reduce mechanical strength and cause stress concentrations if poorly bonded or dispersed.

• Heat Resistance: Fillers can be used to reduce the coefficient of thermal expansion (CTE) of polymers, allowing them to better maintain their shape and strength at high temperatures. Mineral fillers such as talc and glass fibers also increase the heat deflection temperature (HDT) of polymers.
• Dimensional Stability: Some filled thermoplastics have lower shrinkage and better warpage control during molding. Talc is particularly effective in reducing warpage in parts with uneven thicknesses or complex geometries. Talc also helps improve moldability and shorten molding cycle times. However, limiting warpage may come at the expense of mechanical properties such as tensile strength.

Disadvantages of Plastic Fillers

When adding fillers to a polymer matrix, there are also trade-offs to consider, including:

• Reduced Impact Resistance: Fillers typically reduce the ductility and impact strength of the base polymer. The harder the filler, the more brittle the material becomes under sudden stress.
• Surface Finish Degradation: Fillers can result in a rougher surface texture and visible flow lines, especially at higher filler loads. This may require additional finishing or coating steps, or limit applications to internal parts that are not visible after assembly.
• Increased Tool Wear: Abrasive fillers such as glass and carbon fibers can accelerate wear on molding equipment. For this reason, hardened tool steel is usually used.
• Higher Injection Pressure Requirements: Fillers can increase the viscosity of the polymer melt, which may require higher injection pressure during molding. This puts additional stress on the molding machine and increases energy consumption.
• Need for Stronger Tooling: To accommodate the abrasiveness of certain fillers and the high pressures involved, tooling must be made of stronger, more wear-resistant materials, which can increase initial capital costs.
• Potential for Poor Filler Dispersion: Inadequate mixing or filler dispersion can lead to weak points, inconsistent mechanical properties, or cosmetic defects in the final part.

Types of Plastic Fillers and Their Effects

Glass-Filled Plastics

Glass fibers are one of the most commonly used reinforcing fillers in engineering thermoplastics, especially in resins such as nylon (PA), PBT, PEI, and PPS. These fibers are typically added as short or long strands and can significantly improve mechanical properties. In fact, long-strand glass-filled polypropylene has four times the tensile strength and stiffness at room temperature compared to unfilled polypropylene.

The fibers act as load-bearing elements within the matrix, making the plastic stiffer and more dimensionally stable. These qualities are crucial for parts subject to mechanical stress, such as automotive brackets, pump housings, gears, and industrial structural components. However, the orientation of fibers during molding plays a critical role in determining the final part strength. This is why it is essential to optimize part design and (mold) gate placement to maximize fiber alignment in the direction of stress.

Most glass fillers are short-cut, but the use of long-chain fiber technology is growing. These provide better load transfer and more uniform reinforcement but require careful processing, as longer fibers are more susceptible to shear during molding. The addition of coupling agents (e.g., silanes) improves adhesion between fibers and the resin, enhancing mechanical strength, particularly impact resistance, which is a known drawback of highly rigid glass-filled composites.

Carbon Fiber-Filled Plastics

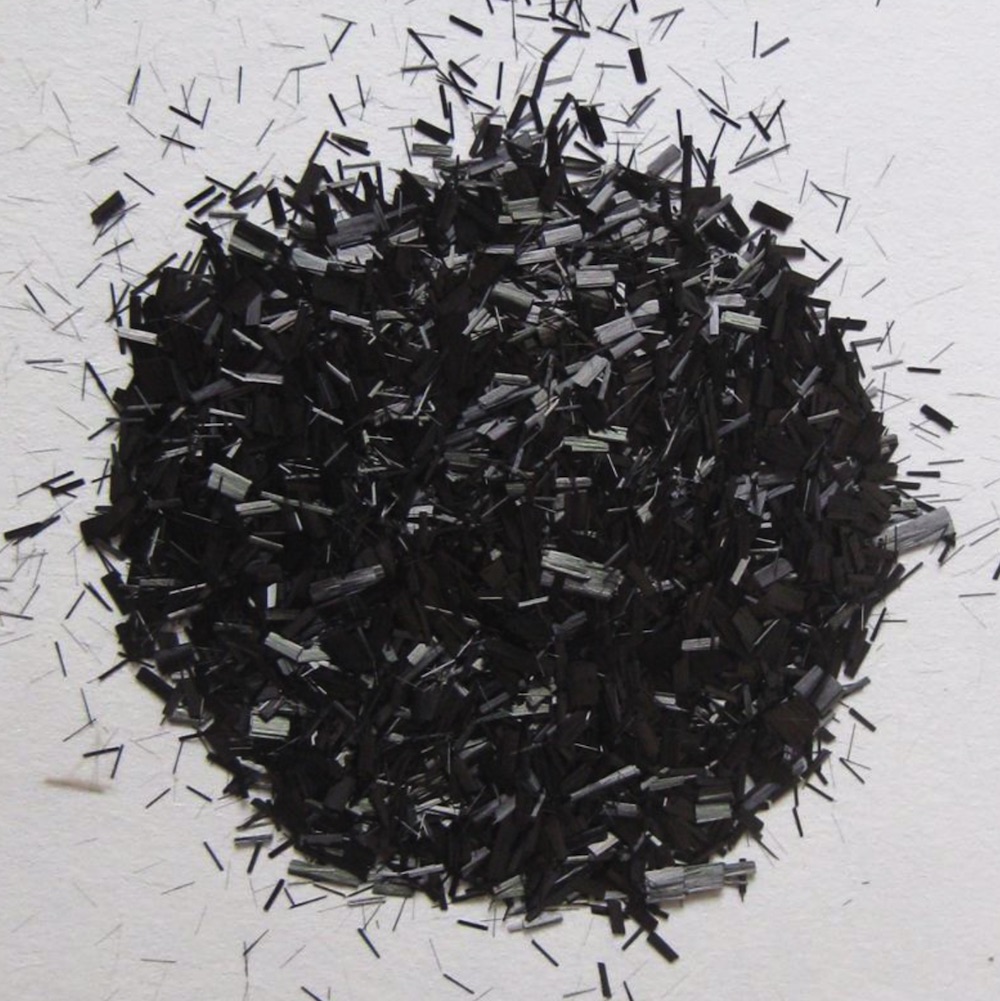

Carbon fiber fillers are designed for high-performance applications where lightweight strength, stiffness, and conductivity are critical. Unlike glass, which adds volume and weight, carbon fibers significantly increase the elastic modulus without adversely affecting density. This makes them ideal for aerospace, electronics, drones, and high-end automotive parts.

When incorporated into thermoplastics such as PEI, PEEK, or PPS, they form composites with excellent modulus-to-weight ratios, enhanced fatigue resistance, and superior dimensional stability under thermal and mechanical stress. Their conductivity also makes them ideal for EMI shielding enclosures, static-dissipative components, and electronic housings.

However, carbon-filled plastics tend to be brittle and have low impact strength unless carefully modified. They are also significantly more expensive than traditional fillers, and processing challenges include tool wear and the tendency of fibers to align during flow, resulting in anisotropic (direction-dependent) properties. Nevertheless, their performance in weight-sensitive structural applications (such as drone airframes or automotive body panels) often outweighs the drawbacks.

Mineral-Filled Plastics

Mineral fillers such as talc, calcium carbonate, mica, silica, and wollastonite are widely used in thermoplastics, particularly polypropylene (PP), nylon (PA), and PVC, to enhance dimensional stability, heat resistance, and processability while reducing raw material costs.

Here is a brief overview of different mineral-filled plastics:

• Talc: The most common mineral filler in polypropylene. It offers good rigidity, heat resistance, and creep resistance, as well as excellent molding properties. Often used in automotive interiors, electrical parts, food packaging, etc.
• Calcium Carbonate and Chalk: Reduce shrinkage during molding, aid in flame retardancy, increase stiffness, and are cost-effective.
• Silica: Improves dielectric strength, resistance to moist heat, and mechanical strength, while increasing the glass transition temperature.
• Diatomaceous Earth: A soft, fossilized silica that enhances chemical, thermal, and electrical insulation while being less abrasive than quartz.
• Wollastonite: A needle-like calcium silicate that improves dimensional stability, UV resistance, and hydrolysis resistance.
• Kaolin (Clay): Provides good electrical properties and melt flow; calcined kaolin improves acid resistance and is often used in wire insulation.
• Mica: Enhances dimensional stability, chemical resistance, barrier properties, electrical insulation, and heat resistance. It can significantly reduce mold shrinkage in nylon by up to 85% and is often used with silane coupling agents to improve bonding with the polymer matrix.

Design and DFM Considerations for Filled Thermoplastics

When designing with filled plastics, several key factors affect part performance and manufacturability:

• Fiber Orientation and Mechanical Anisotropy: In fiber-filled thermoplastics, fibers tend to align along the flow direction during molding, resulting in anisotropic mechanical properties. This means strength and stiffness vary depending on the direction of loading, so designers must consider directional load paths to avoid unexpected failures.
• Surface Finish: Increasing filler content, especially fibers, usually results in a rougher surface finish as fiber ends protrude or affect flow patterns. Secondary finishing or coating may be required to improve surface quality.
• Higher Viscosity: Adding fillers can increase the viscosity of the feed during molding. This makes it more difficult to inject the thermoplastic into complex molds. Therefore, design features such as thin walls may not be feasible. This issue can be mitigated by increasing temperature, but higher cycle costs may significantly reduce the economics sought by using fillers.
• Reduced Shrinkage and Part Warpage: Fillers can reduce overall shrinkage and improve dimensional stability, helping to minimize warpage. However, uneven fiber distribution or orientation can still cause distortion, so careful gate placement and molding parameters are crucial. For tolerance-sensitive parts, production testing with low-cost molds may be necessary before making any necessary modifications to the final hardened steel mold.
• Mold and Equipment Wear: Abrasive fillers such as glass and carbon fibers can cause increased wear on molds and any tools used for post-molding processing. Proper tool materials (e.g., high-quality tool steel), chip control strategies, and optimized cutting parameters are necessary to maintain tool life.
• Increased Ejection Force and Draft Angles: Filled parts typically have higher ejection forces due to increased friction. Adequate draft angles are required to ensure smooth part release without damage and excessive mold wear.

3D Printing Limitations of Filled Plastics

Integrating fiber and mineral-filled thermoplastics into additive manufacturing presents technical limitations that affect print quality, durability, and process compatibility.

FDM (Fused Deposition Modeling)

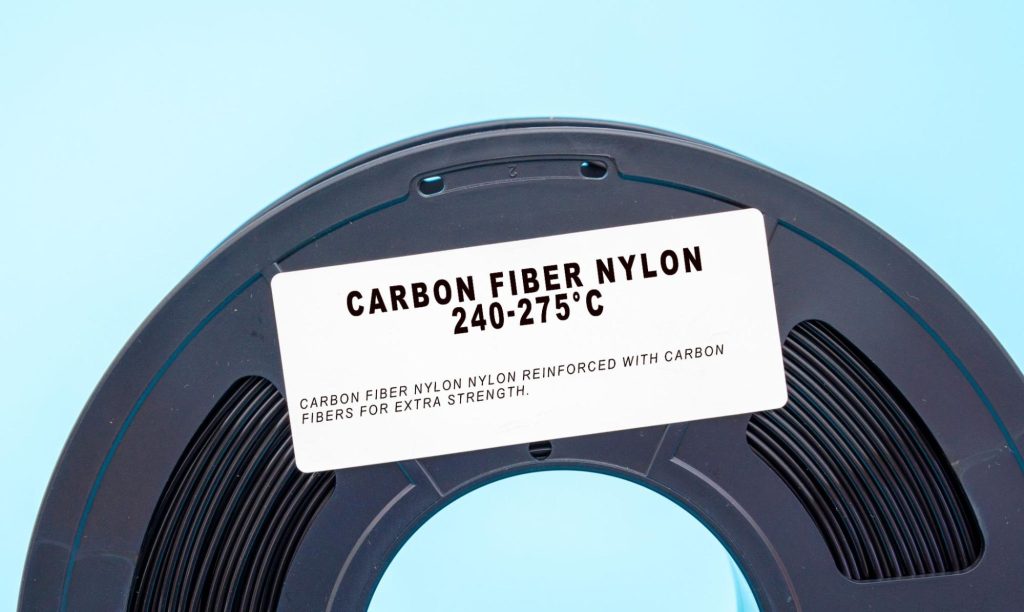

FDM is currently the most accessible 3D printing method that can handle filled plastics. Glass and carbon-filled filaments are available on the market, offering higher stiffness, strength, and heat resistance compared to unfilled filaments.

However, these benefits come with drawbacks. The abrasiveness of reinforcing fibers causes rapid nozzle wear, requiring the use of hardened steel or ruby-tipped nozzles. Additionally, filled filaments often result in poor layer adhesion during printing and increased stringing, which affects the mechanical properties and surface finish of printed parts.

SLA/DLP

Stereolithography (SLA) and Digital Light Processing (DLP) technologies use photopolymerized liquid resins, which inherently limit their compatibility with fiber reinforcement. Fibers cannot remain suspended in the resin and do not align during curing, making traditional fiber-filled composites incompatible with these processes.

Instead, these printers may use ceramic or glass powder-reinforced resins, which provide some mechanical improvements but do not match the structural advantages of true fiber-filled thermoplastics. Furthermore, SLA/DLP resins designed for flexibility or durability cannot replicate the high modulus or thermal stability of fiber-reinforced materials.

SLS (Selective Laser Sintering)

SLS offers a more robust platform for producing filled plastic parts, using powdered thermoplastics that can include additives such as glass or mineral fillers. For example, glass-filled nylon has higher rigidity and better heat resistance compared to standard nylon.

SLS also produces parts with less anisotropy than FDM, thanks to its layer-by-layer sintering mechanism that does not require extrusion. However, filled SLS powders are typically expensive, and while the resulting parts perform well, they still do not match the mechanical strength of injection-molded parts.

Producing Stronger Thermoplastic Parts with Glass, Carbon, or Mineral Fillers

Plastic fillers, such as glass fibers, carbon fibers, and mineral powders, can significantly enhance the mechanical, thermal, and dimensional properties of thermoplastics, enabling their use in demanding engineering applications. However, these benefits are accompanied by trade-offs, such as reduced impact resistance, rough surfaces, increased tool wear, and manufacturing complexity. Successful application depends on understanding these factors, designing for the anisotropy and behavior of filled materials, and selecting compatible manufacturing processes.
